See every member. Before you price it.
VizeEst converts 2D structural steel drawings into interactive 3D visual models, so estimators can cross-reference scope, detect conflicts, and validate quantities without leaving the estimating workflow.
- 2D to 3D estimator verification
- Structural steel visualization
- BIM-lite for estimators
See more before you price more.

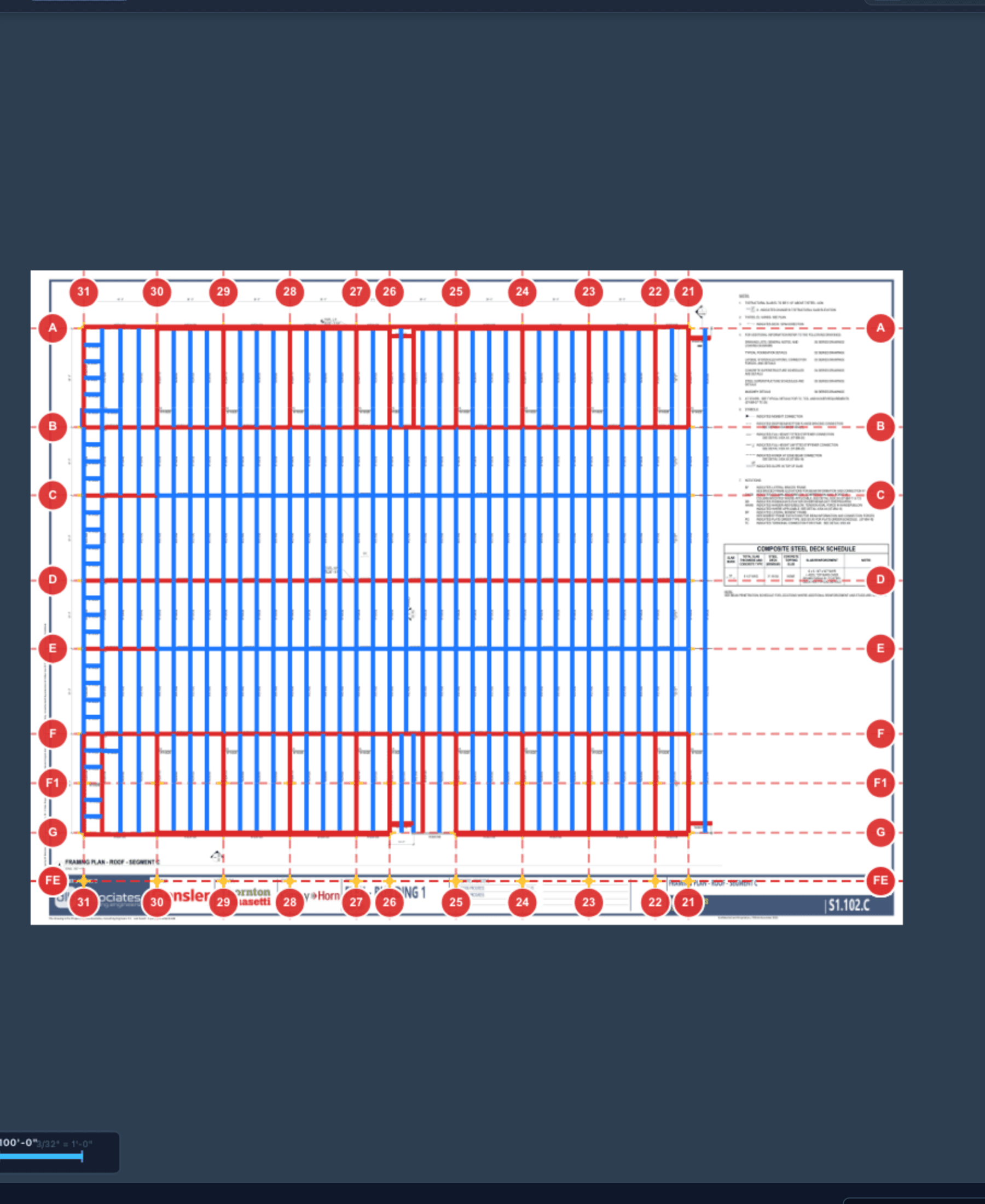

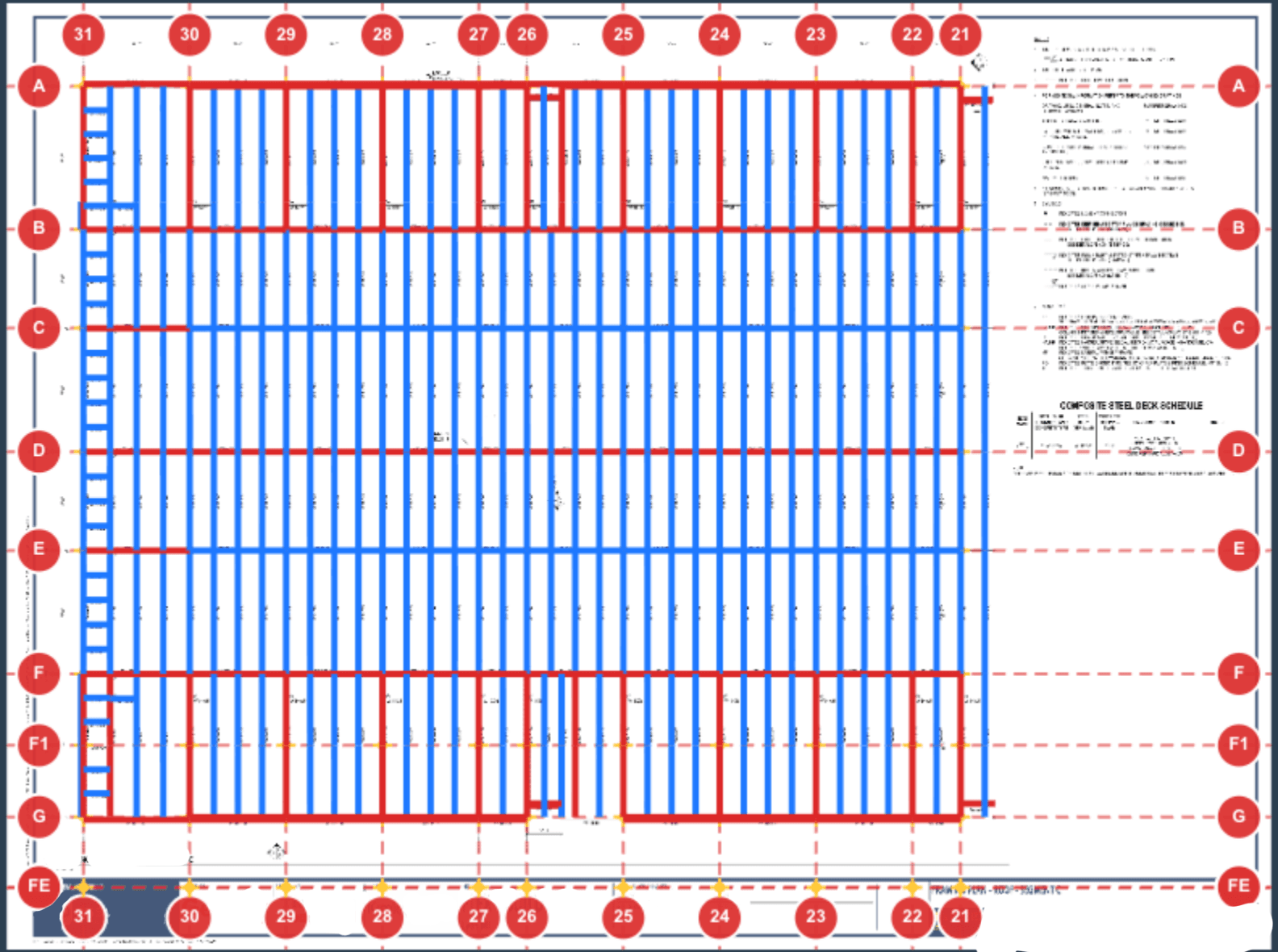

Traditional steel estimating relies on mentally reconstructing 3D structures from flat 2D plan sheets, a process prone to interpretation errors and missed connections. VizeEst bridges this gap with automated 2D-to-3D visual reconstruction, giving estimators an interactive structural model they can rotate, zoom, and inspect layer by layer.
Structural context that flat drawings cannot provide.

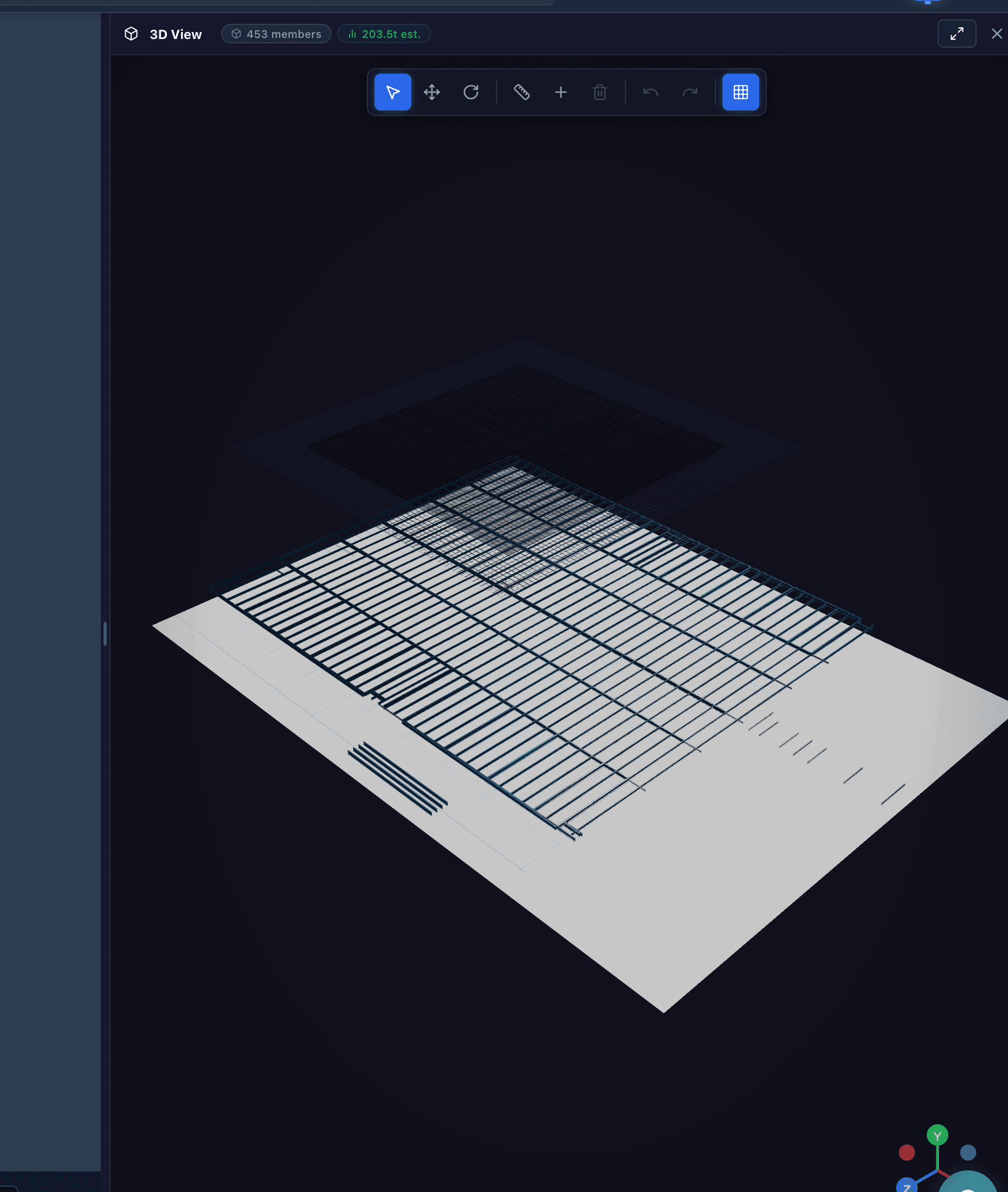

Filled structural model.
See the building as it will be fabricated. Solid shaded members in correct spatial relationships, so the estimator understands the structure without mentally reconstructing it from flat sheets.

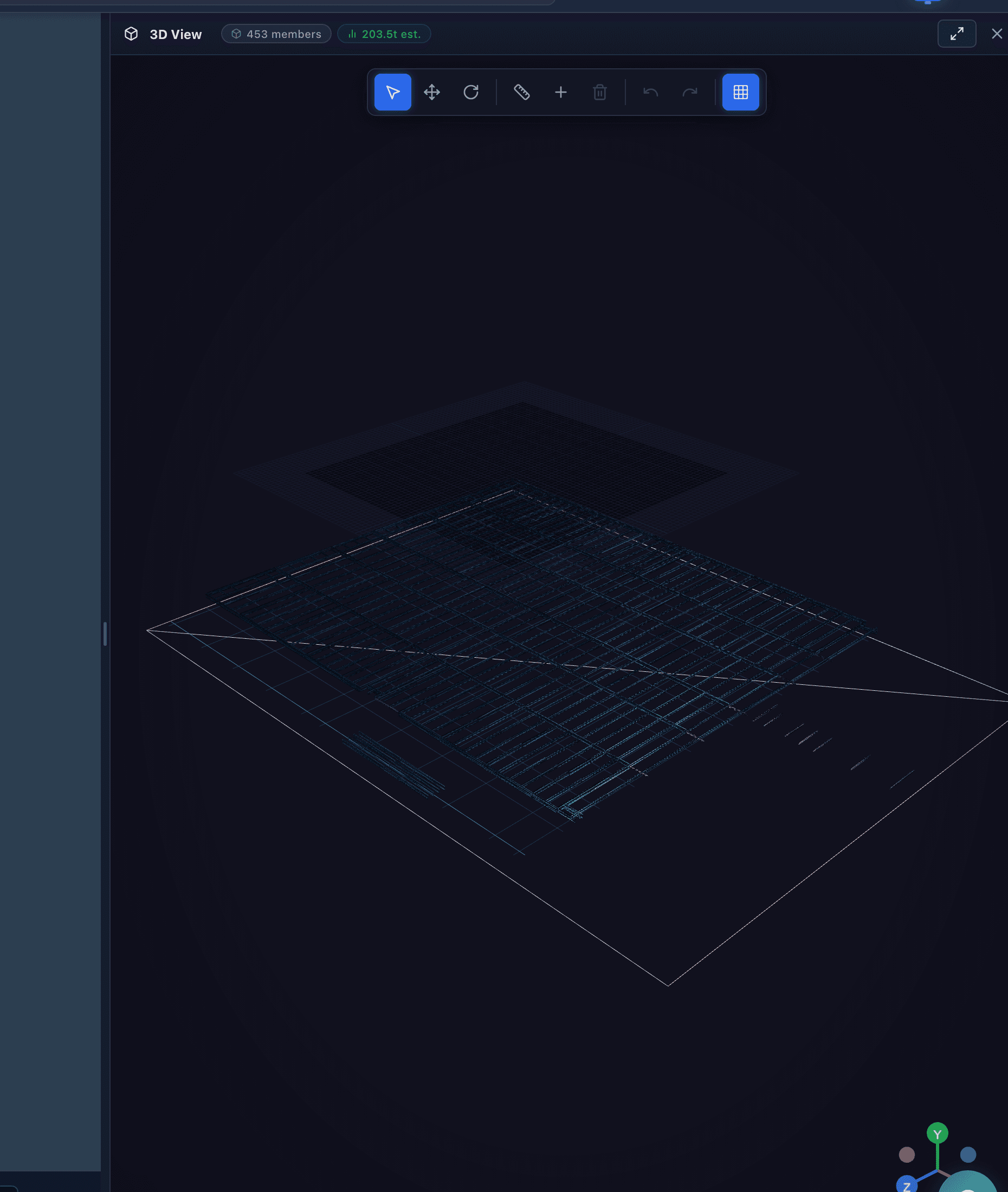

Every connection visible.
Wireframe mode exposes every beam, column, and brace simultaneously. Nothing hides behind surfaces. Conflicts, intersections, and scope gaps become immediately obvious.

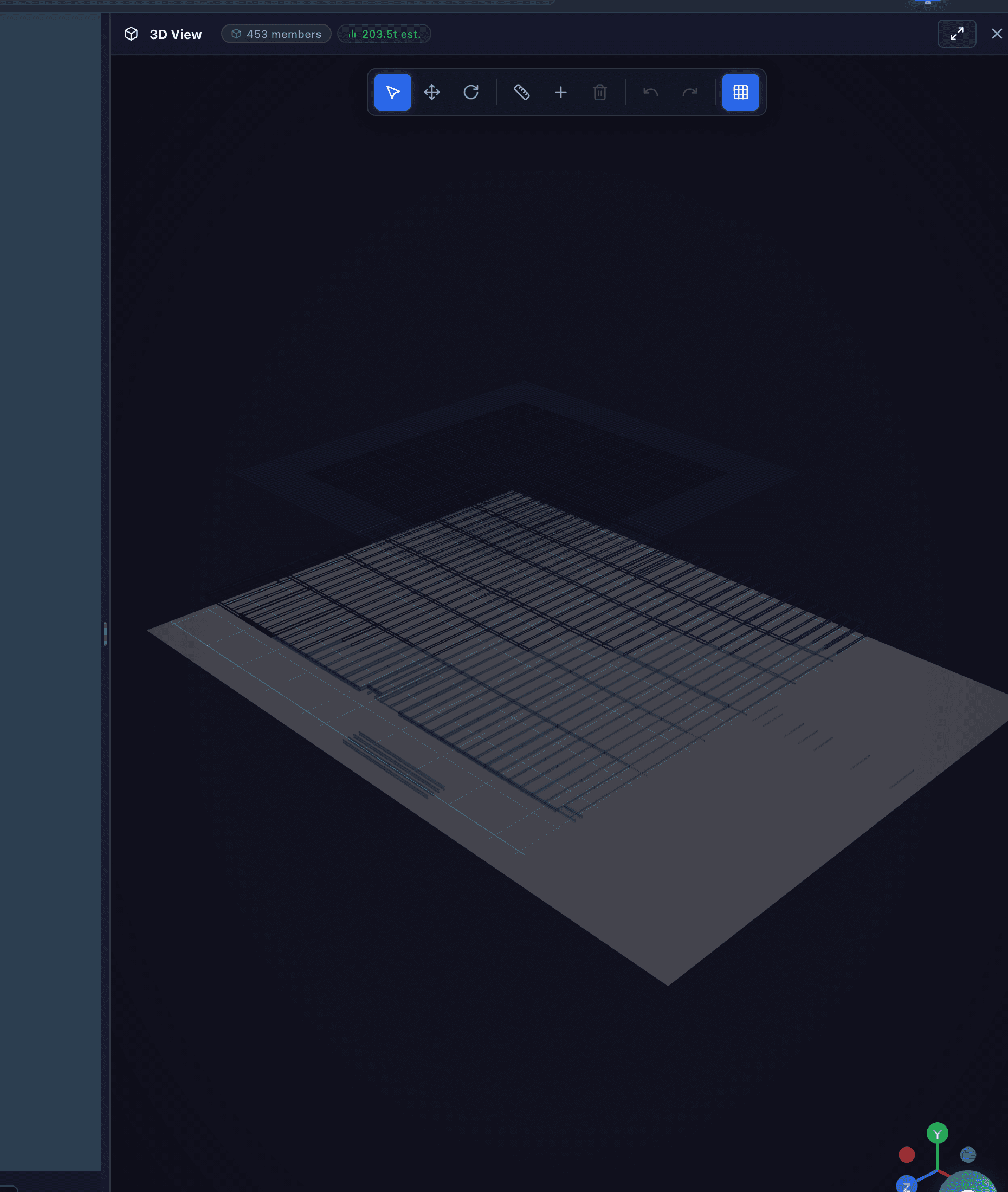

Structural depth, revealed.
X-Ray mode shows interior structure through exterior surfaces. See hidden bracing, embedded plates, and connection details that are nearly invisible on a flat drawing.

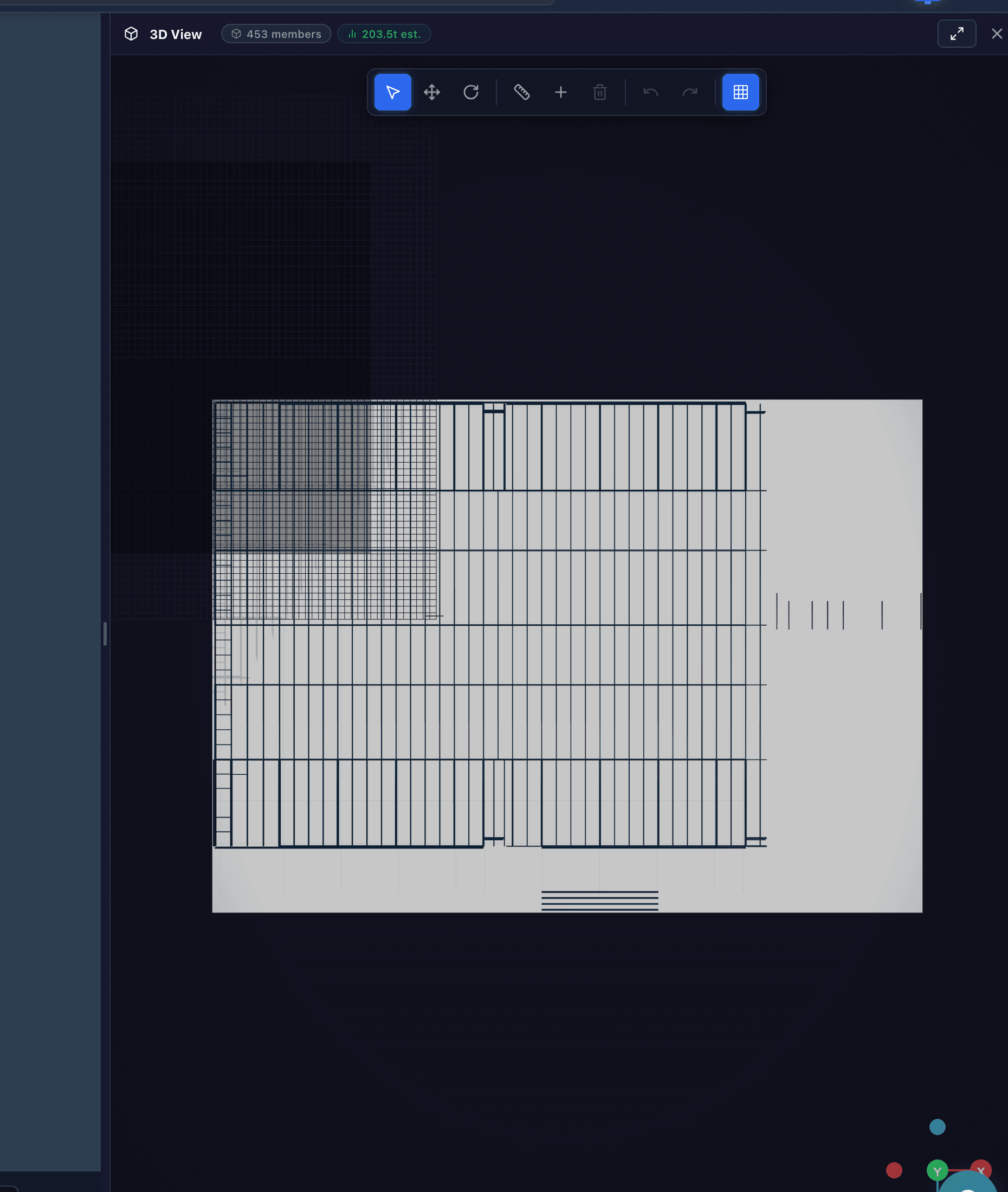

Every member traceable. Every angle inspectable.
Switch between plan, top, front, and isometric views in one click. Every detected member links back to its source drawing, so estimators can confirm interpretation before committing to the number.
- Plan, Top, Front, and Isometric views
- Click any member to jump to source drawing

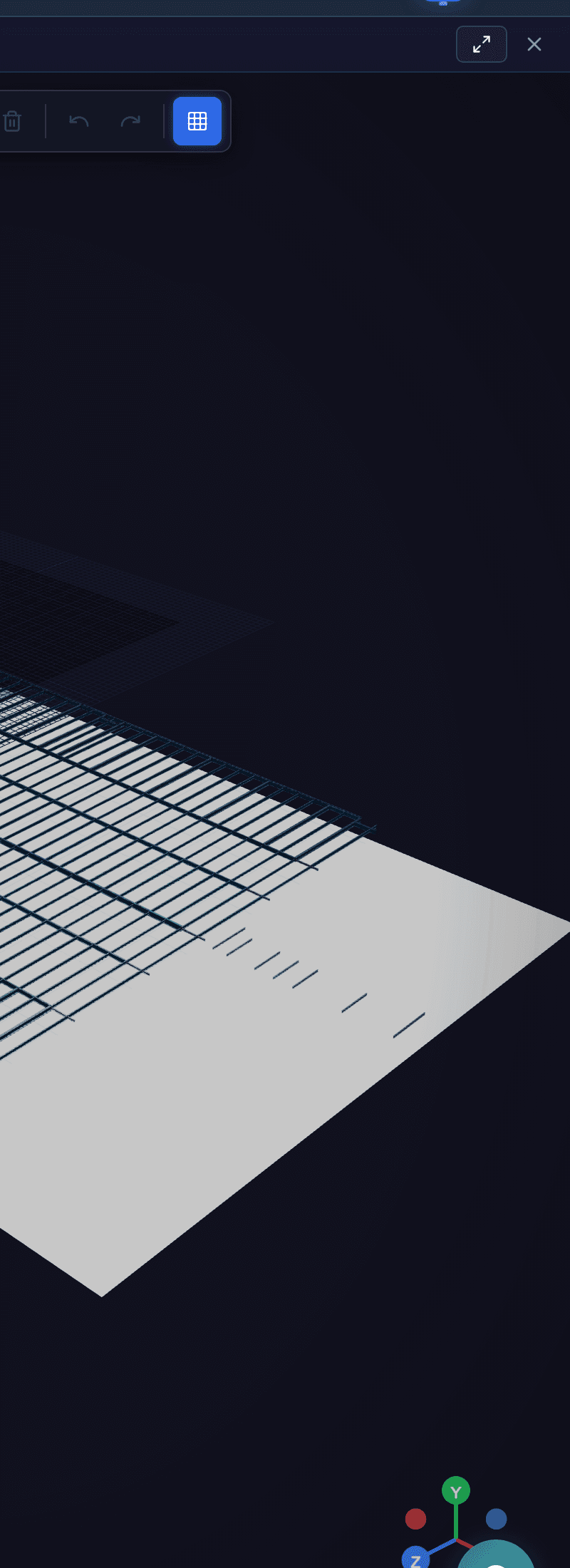

- Confidence score on every extracted element
Fewer RFIs. Fewer missed members. Stronger bids.
When estimators can visually verify structural scope before pricing, the downstream impact is significant. Teams report fewer requests for information (RFIs) during bidding, reduced change order exposure, and stronger internal confidence during bid review. Visual verification transforms estimating from a high-risk interpretation exercise into a structured validation workflow.
The old way
- Mentally reconstruct 3D structures from flat 2D sheets
- Miss hidden members buried across multiple schedules
- Interpretation errors drive costly RFIs and change orders
The verified way
- Interactive 3D models, rotate, zoom, and inspect layer by layer
- Every member visible, traceable back to its source drawing
- Bid-day confidence with visual proof of full coverage
